Enterprise Wi-Fi Authentication Platform using Microsoft NPS, RADIUS, and 802.1X EAP-TLS

Problem

The organization required a secure and centralized authentication mechanism for corporate Wi-Fi access to meet internal security standards and fintech regulatory compliance requirements. The existing wireless access model lacked strong identity validation, centralized access control, and auditable authentication processes.

Solution

Designed and implemented a Microsoft Network Policy Server (NPS) infrastructure integrated with RADIUS authentication and 802.1X EAP-TLS certificate-based authentication for enterprise wireless access.

Wireless access points, routers, and switches were configured as RADIUS clients, enabling centralized authentication and policy enforcement across the network. Client certificate validation was implemented to ensure only authorized and trusted devices could access corporate wireless resources.

To improve service availability and authentication resilience, multiple NPS hosts were deployed alongside an NPS RADIUS Proxy responsible for authentication request forwarding and policy processing.

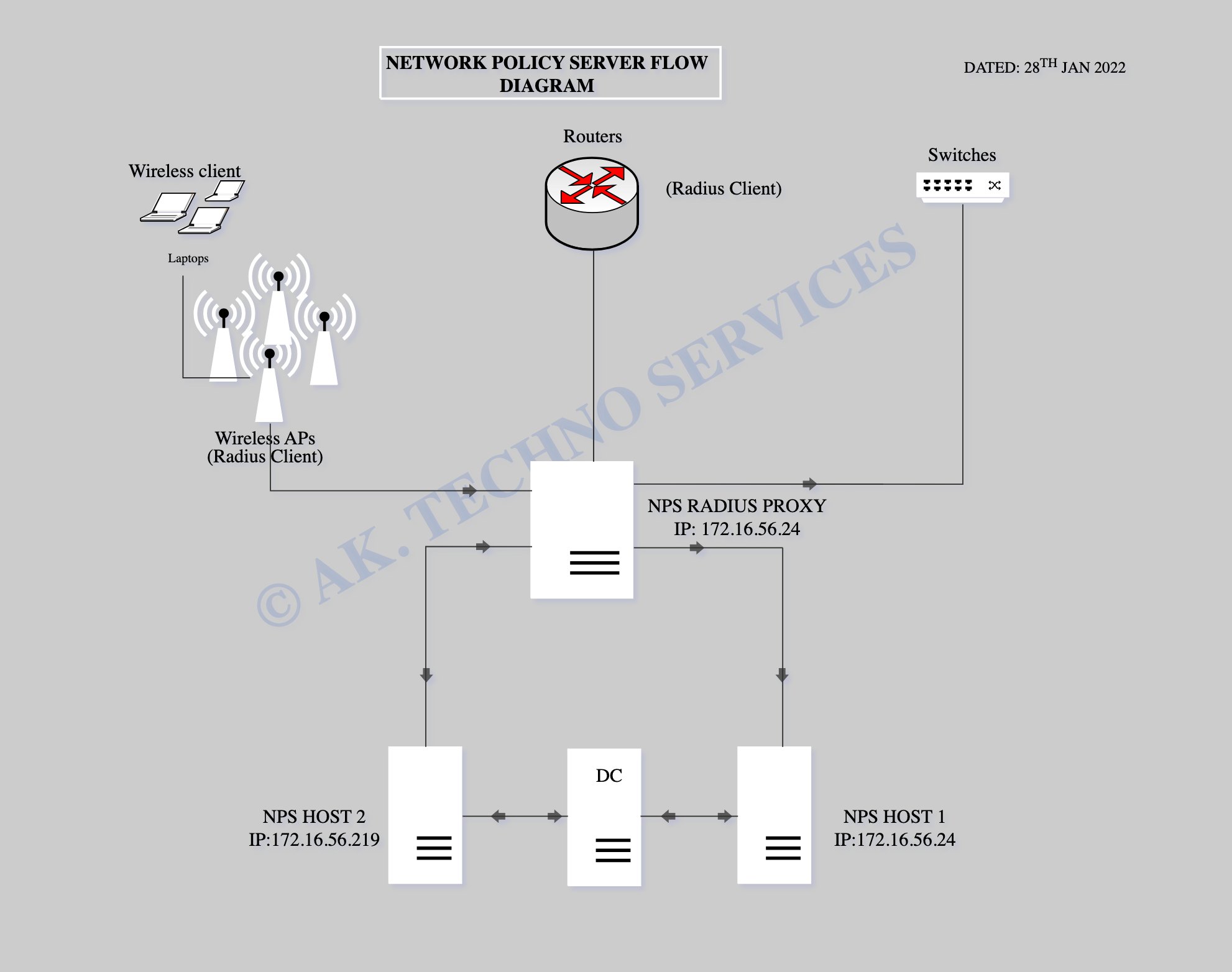

Architecture

• Wireless clients authenticated through 802.1X EAP-TLS using client certificates.
• Wireless access points, routers, and switches acted as RADIUS clients.
• Authentication requests were forwarded to the NPS RADIUS Proxy.
• The RADIUS Proxy distributed requests across multiple NPS hosts.
• Active Directory Domain Services validated user and device identities.
• Certificate validation enforced trusted endpoint authentication before network access was granted.

Outcome

The implementation established centralized, certificate-based wireless authentication across the enterprise environment. The solution improved network access security, strengthened compliance alignment, and provided auditable authentication controls suitable for a regulated fintech environment.

Key Takeaways

• 802.1X EAP-TLS provides stronger authentication security than password-based wireless access.
• Certificate validation significantly reduces the risk of unauthorized device access.
• Centralized RADIUS authentication improves policy consistency and auditability.
• Future iterations should include NAC integration and automated certificate lifecycle management.

Reflection

Future improvements would focus on integrating Network Access Control (NAC), certificate auto-enrollment, and centralized SIEM monitoring for authentication analytics and threat detection.
