AWS Single Sign-On Integration with Azure Active Directory

Problem

The organization required a centralized identity and access management solution for AWS environments to eliminate standalone IAM user management across multiple AWS accounts.

The existing approach created operational overhead, inconsistent access control, and increased security risks associated with manually managed credentials and fragmented user administration.

The solution needed to provide:

• Centralized authentication
• Role-based access control across AWS accounts
• Automated user and group provisioning
• Simplified onboarding and offboarding
• Secure federated access to AWS resources

Solution

Implemented AWS Single Sign-On (AWS SSO) integrated with Azure Active Directory using SAML federation.

Azure AD was configured as the Identity Provider (IdP), while AWS SSO acted as the Service Provider (SP). SCIM provisioning was enabled to synchronize Azure AD users and groups into AWS SSO automatically.

Permission Sets were designed and mapped to Azure AD groups, allowing controlled access delegation into Development, QA, and Production AWS accounts through automatically generated IAM roles.

This approach centralized identity governance within Azure AD while enabling secure federated access into AWS environments without maintaining separate IAM user accounts.

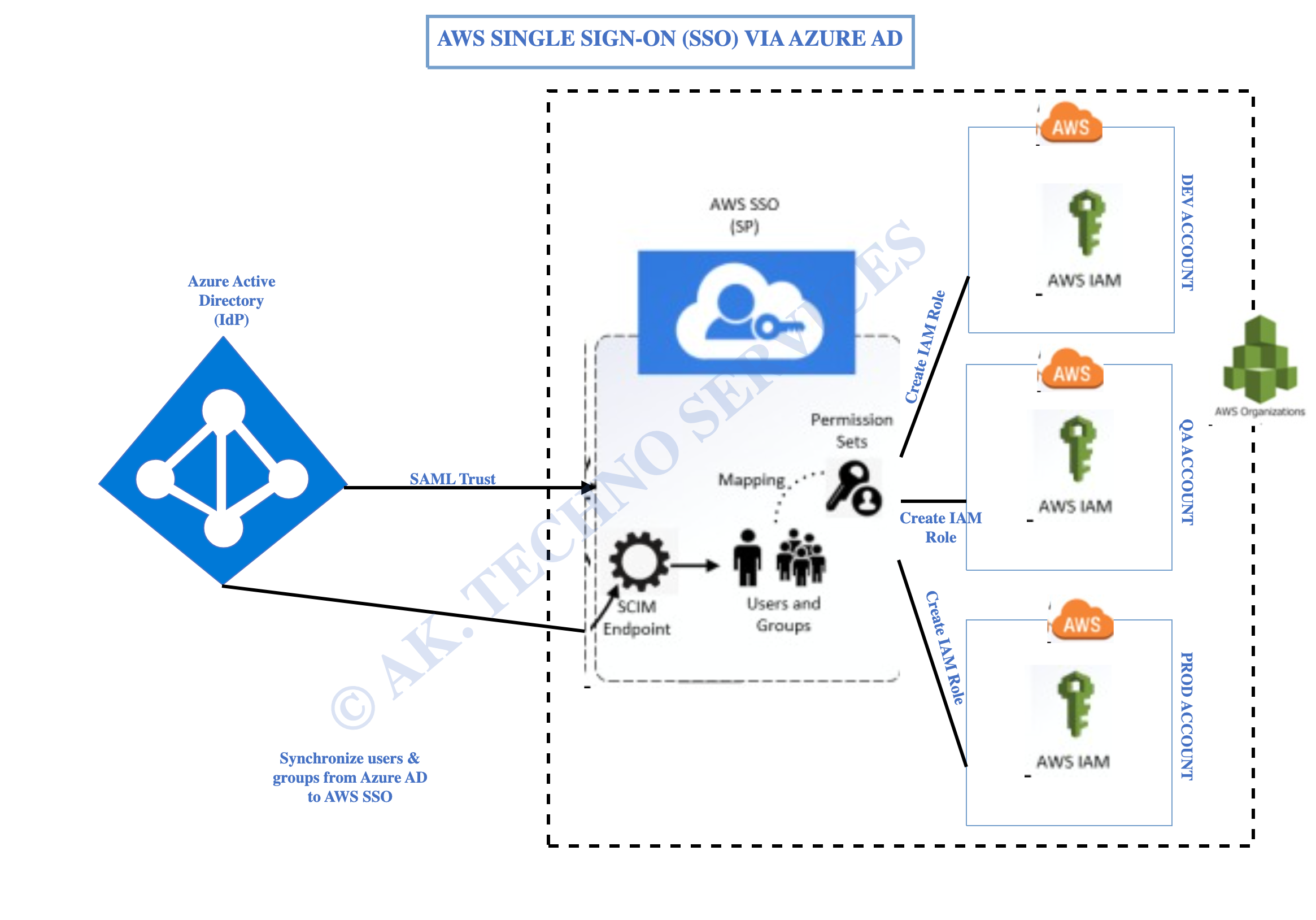

Architecture

• Azure Active Directory acted as the centralized Identity Provider (IdP).
• A SAML trust relationship was established between Azure AD and AWS SSO.
• SCIM provisioning synchronized users and groups from Azure AD into AWS SSO.
• AWS SSO mapped synchronized groups to Permission Sets.
• IAM roles were automatically created and assigned within AWS accounts based on mapped permissions.
• Users authenticated using Azure AD credentials and accessed authorized AWS accounts through federated SSO.

Tech Stack

AWS SSO • Azure Active Directory • SAML 2.0 • SCIM Provisioning • AWS IAM • AWS Organizations • Federated Identity Management

Outcome

The implementation centralized authentication and access governance across the organization’s AWS environments while reducing operational complexity and improving security posture.

The solution eliminated the need for long-term IAM user credentials, streamlined access provisioning, and enabled scalable role-based access management across multiple AWS accounts.

Key Takeaways

• Centralized AWS authentication using Azure AD federation and AWS SSO.
• Reduced credential management risks by eliminating standalone IAM users.
• Automated user lifecycle management through SCIM synchronization.
• Future improvements could include Conditional Access policies, MFA enforcement, and Just-In-Time privileged access controls.

Reflection

If redesigning the implementation today, I would extend the solution using AWS IAM Identity Center enhancements, automated IaC deployment pipelines, and tighter Zero Trust access controls integrated with Conditional Access and device compliance policies.
